Regular Curtain Walling

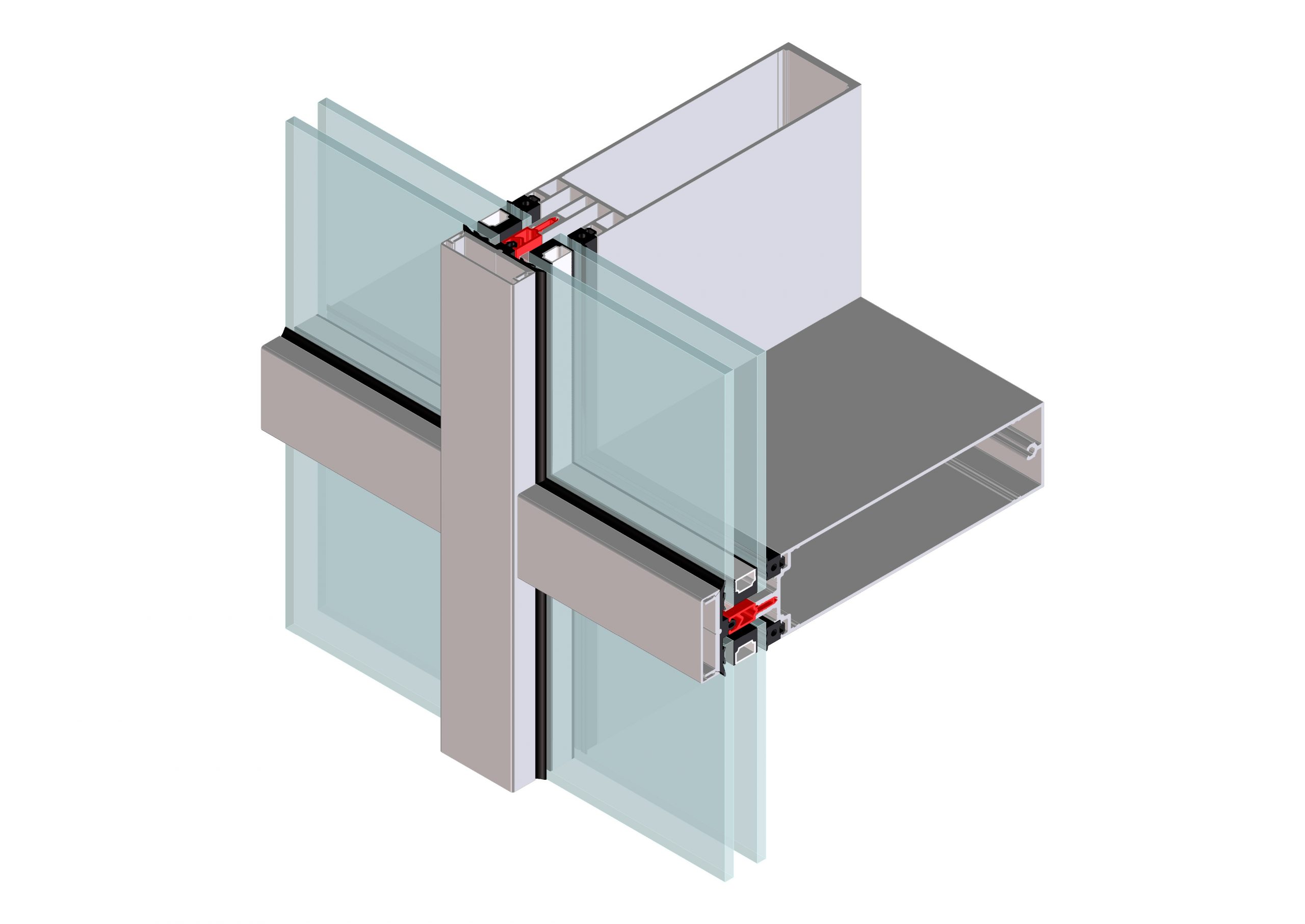

EFP 50 RCW and EFP 60 RCW curtain wall systems enables the construction of attractive sloped and inclined curtain walling, with the benefits of slim sightlines.

These thermally insulated 50 and 60 mm stick curtain wall system consist of many standard profiles. Customs made profiles are available upon request.

  • Wide range of cover caps with typical edge radius of 1.5 mm for even distribution of the powder coating layer. Sightlines of 50mm
  • Economic ladder (unit) construction by using typical spring loaded transom spigots
  • Continuous pressure plate gasket
  • One substructure for all curtain wall types (RCW-TSH-TSV-FSS)

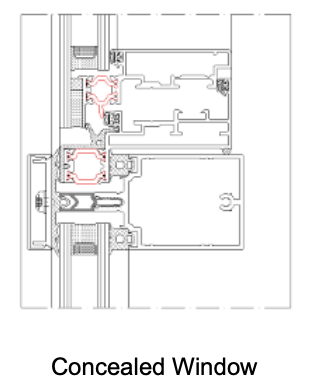

  • Fully integrated concealed window system EFP 55 SSG
  • Incorporates EFP Systems:
    – Louver & Sunshade Blades
    – Windows & Doors
    – Sliding and Windows & Doors
  • Tested in the UK at Taylor Woodrow according the latest European Standards

EFP 60 RCW

With an increasing demand for larger vertical and horizontal spans a range of high static value mullions and transoms with a sightline of 60 mm.

  • One substructure for all curtain wall types (RCW-TSH-TSV-FSS)
  • Same components and gaskets as EFP 50 RCW

Glass thickness:

Drainage:

Thermal insulation:

Sound isolation:

Wind resistance:

Water tightness:

Air infiltration:

2mm up to 68mm; glazing according BS 6262

mullion drained and pressure equalised as specified in BS 6262

class 2.1 in accordance with EN ISO 10077-1

depending largely upon the glass spec, the frame reduces the figure about 2dB(A)

-2400 Pa design- 3300 Pa safety – according BS EN 13116

up to 750 Pa; Class RE 750 acording BS EN 12154

up to 750 Pa; ClassAE 750 according BS EN 12152
