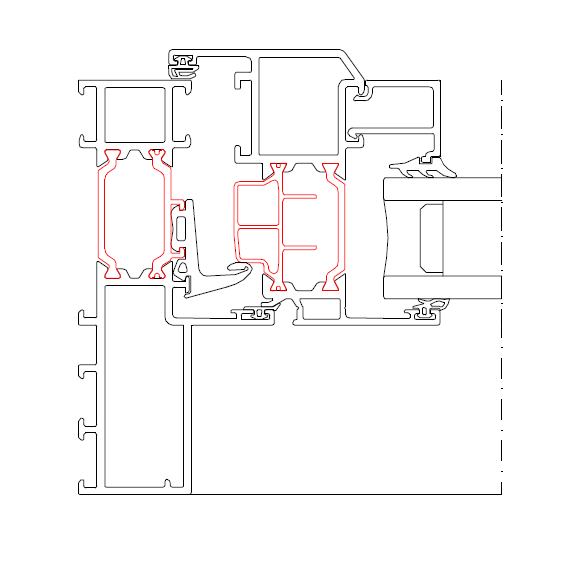

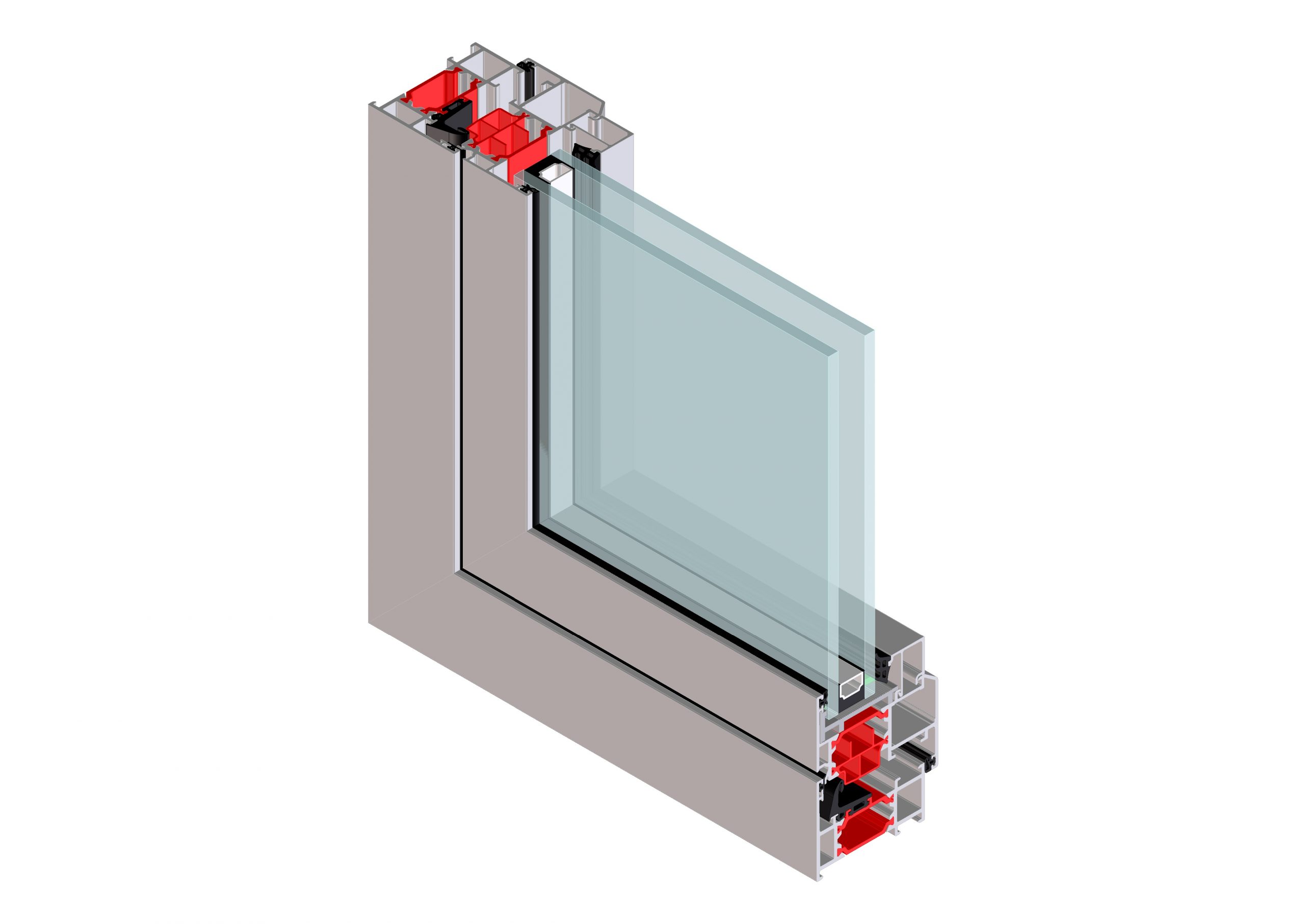

EFP 65tb Window System is a thermally broken and fully drained & pressure equalized system, open in or open out, glazed from inside or outside. Frames, transoms/mullions from 24mm up to 50mm and vents from 40 mm up to 50mm within our standard range.

Various window types can be constructed. Like fixed lights, side-top and bottom hung with butt hinges or friction hinges/stays. Double casement (French windows) open in or open out, vertically and horizontally pivoting windows etc are available within this system. The smallest sight line of 45mm can be achieved when selecting a hidden vent.

Some highlights and unique points:

• fully drained & pressure equalized.
• euro groove for unrestricted choice of hardware.
• frame + vent same glazing depth (55mm).
• glazing thickness from 4 up to 50mm.
• Uf value: 2.2 W/m2K

Classifications

Air permeability:      Class 4
Water tightness        Class E 1200
Wind resistance        Class C5
         (2000 Pa design-3000 Pa safety)

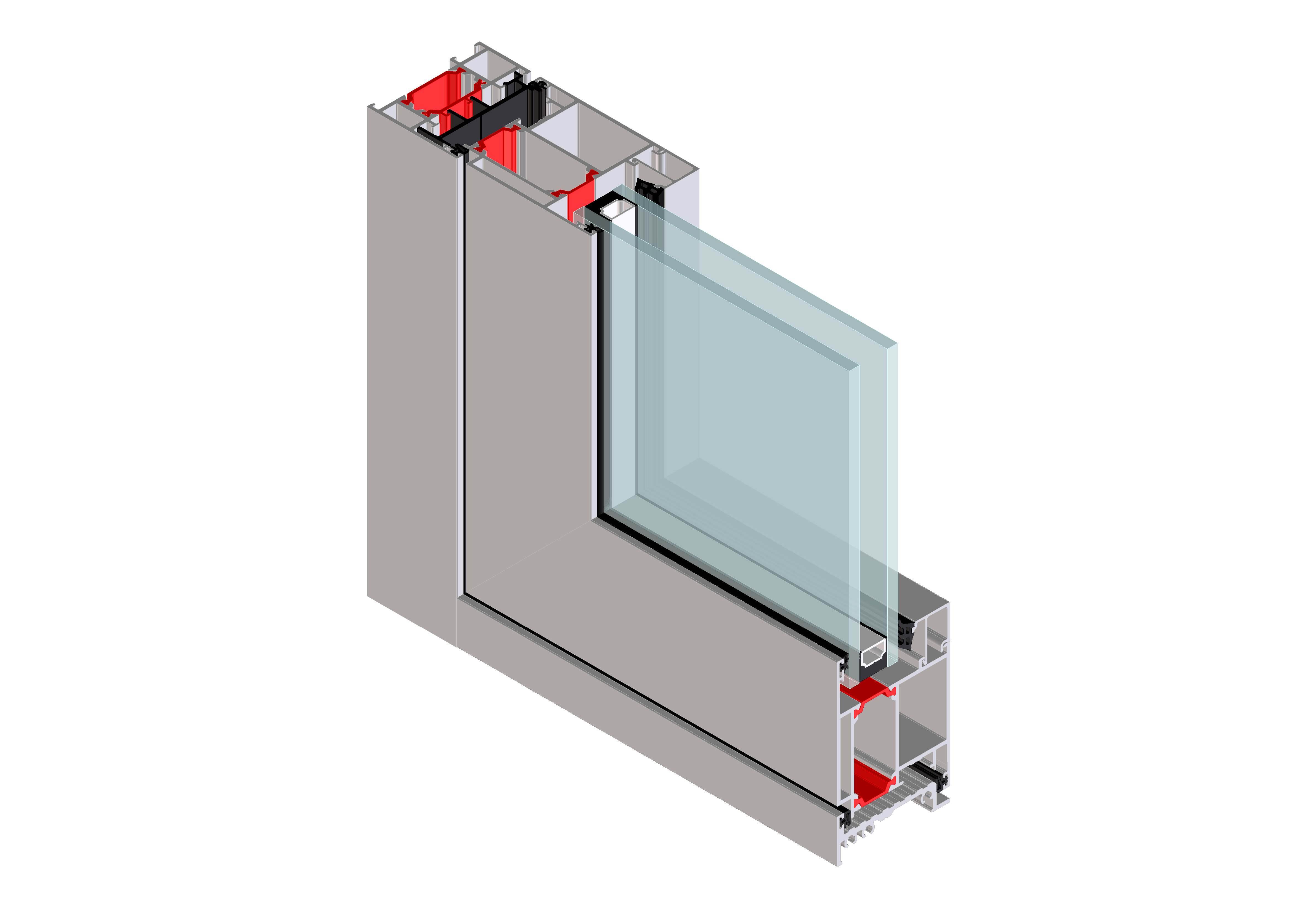

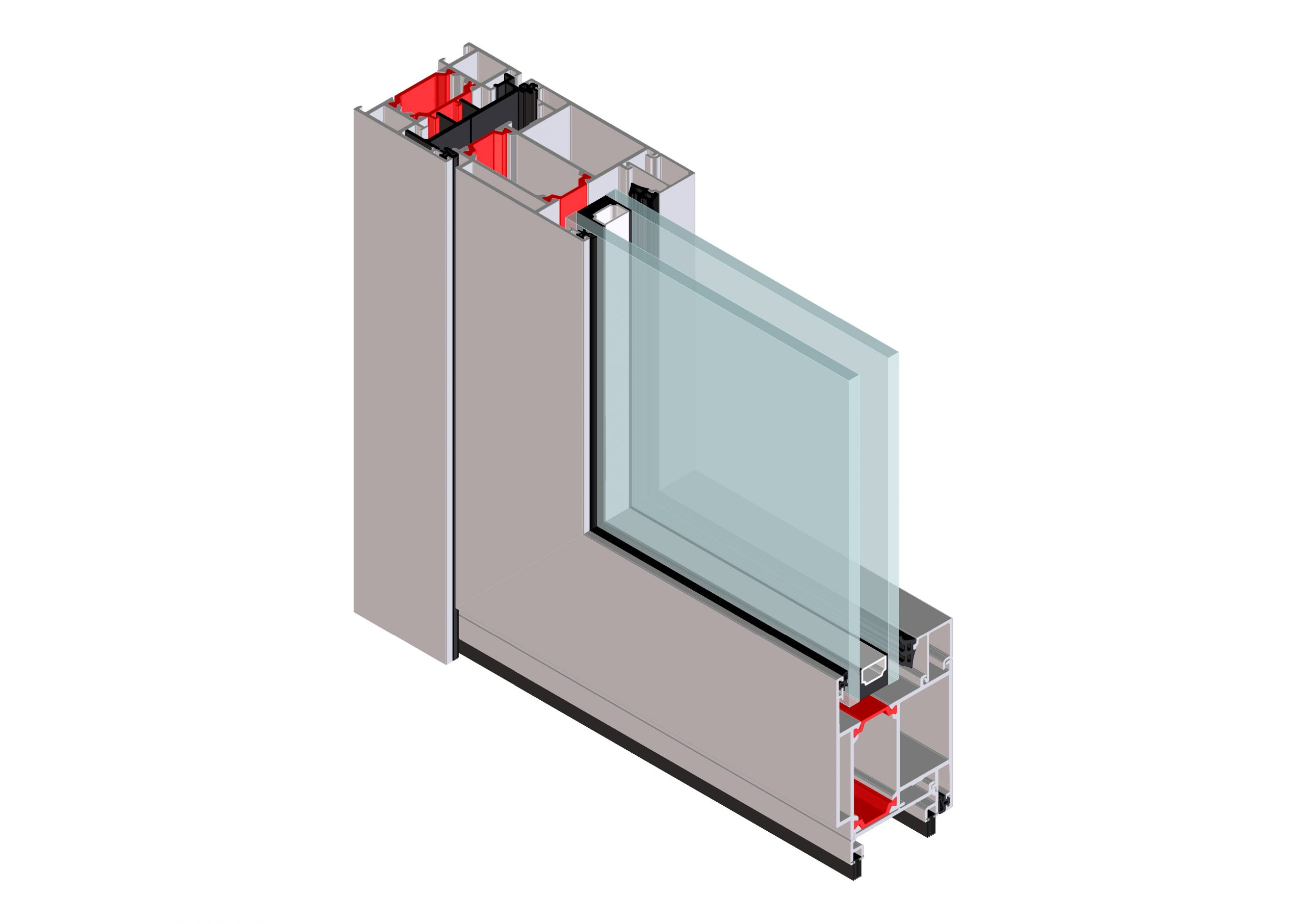

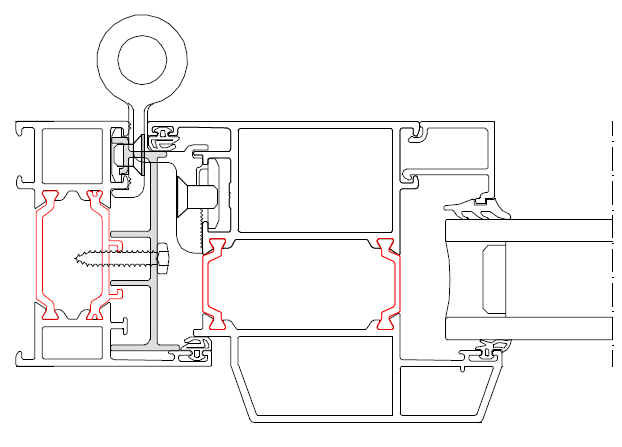

EFP 65tb Door Systems is a thermally broken and fully drained & pressure equalized system, open in or open out, glazed from inside or outside. Frames, transoms/mullions from 24mm up to 50mm and vents from 40 mm up to 50mm within our standard range.

Various door types can be constructed. Like single or double doors, swing doors, folding doors, automatic and full glass doors. Available with or without threshold.

Some highlights and unique points:

• fully drained & pressure equalized.
• euro groove for unrestricted choice of hardware.
• frame + vent same glazing depth (55mm).
• glazing thickness from 4 up to 50mm.
• door height up to 2700mm, heavy duty series up to 3000mm

Classifications

Air permeability:      Class 4
Water tightness        Class E 1200
Wind resistance        Class C5
         (2000 Pa design-3000 Pa safety)

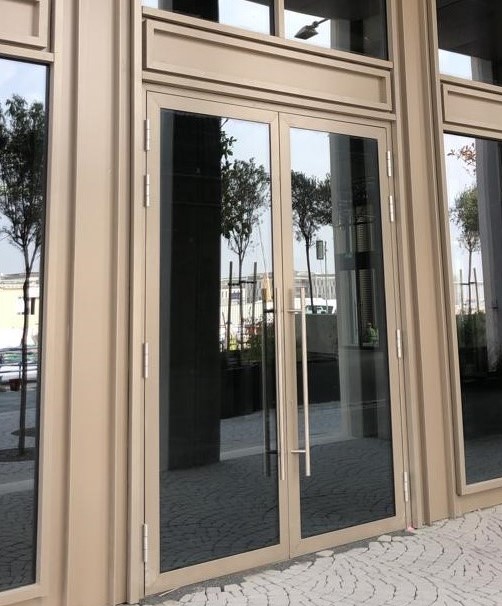

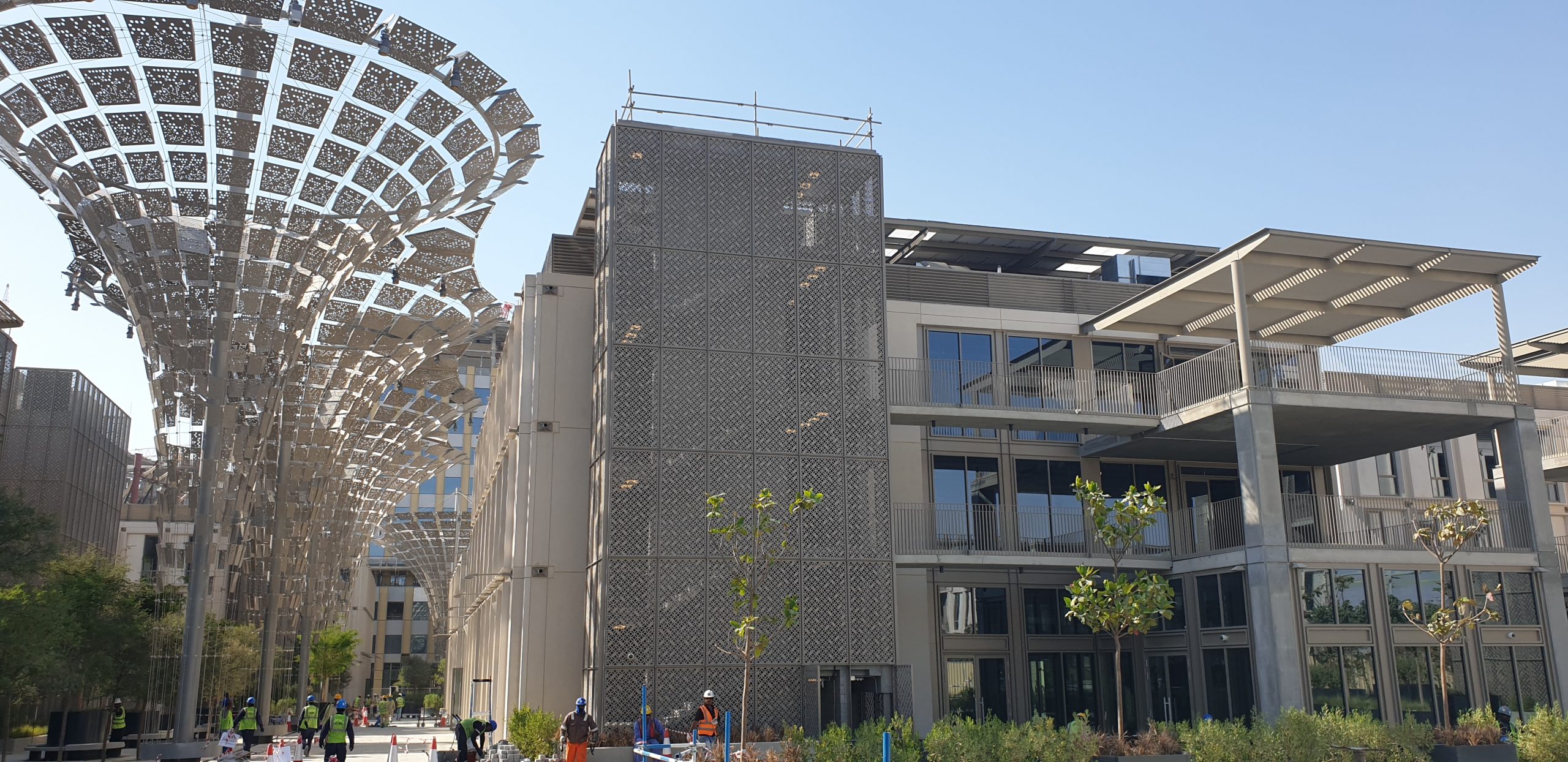

References

EXPO 2020, UAE
